1. Select 是前面 I/O 复用模型介绍的标准网络编程 API，可以实现应用程序通过一个阻塞对象监听多路连接请求
2. Reactor 对象通过 Select 监控客户端请求事件，收到事件后通过 Dispatch 进行分发
3. 如果是建立连接请求事件，则由 Acceptor 通过 Accept 处理连接请求，然后创建一个 Handler 对象处理连接完成后的后续业务处理
4. 如果不是建立连接事件，则 Reactor 会分发调用连接对应的 Handler 来响应
5. Handler 会完成 Read→业务处理→Send 的完整业务流程

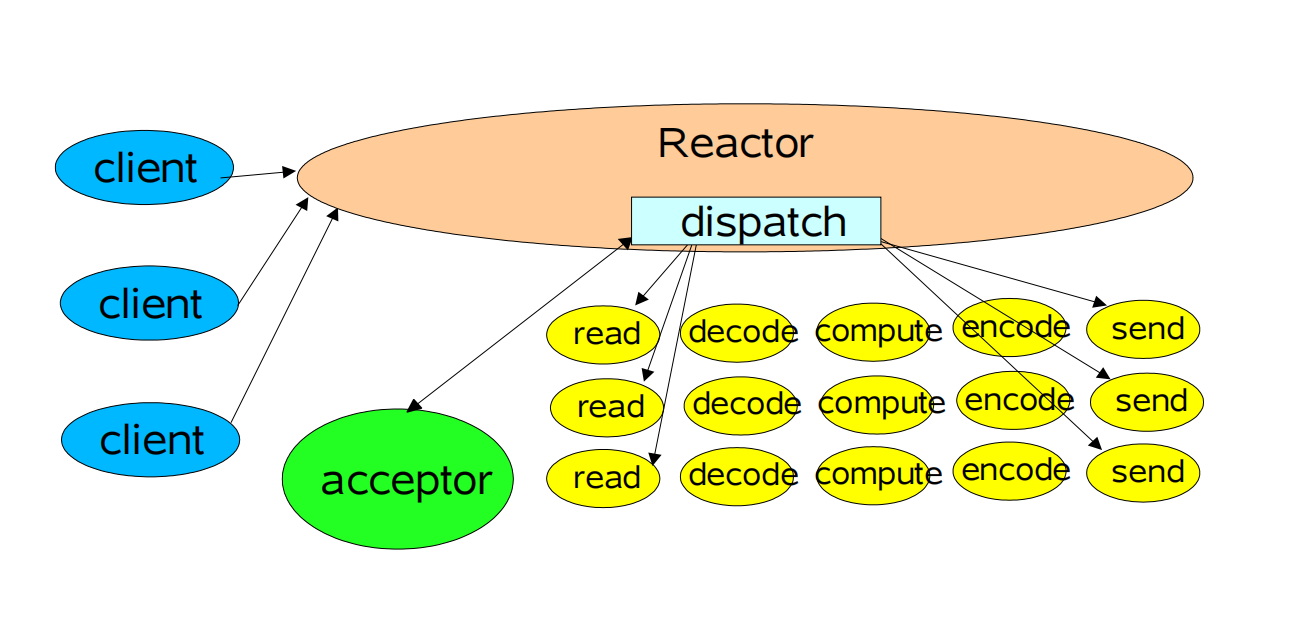

Basic Reactor Design

（基础单线程模型设计）Single threaded version

Reactor 1: Setup

• reactor

class Reactor implements Runnable {
    final Selector selector;
    final ServerSocketChannel serverSocket;

    Reactor(int port) throws IOException {
        selector = Selector.open();
        serverSocket = ServerSocketChannel.open();
        serverSocket.socket().bind(new InetSocketAddress(port));
        serverSocket.configureBlocking(false);
        SelectionKey sk = serverSocket.register(selector, SelectionKey.OP_ACCEPT);
        sk.attach(new Acceptor());
    }
}
    /*Alternatively, use explicit SPI provider:
    SelectorProvider p = SelectorProvider.provider();
    selector = p.openSelector();
    serverSocket = p.openServerSocketChannel();
    */

Reactor 2: Dispatch Loop

• 转发

    public void run() { // normally in a new Threadtry
        {
            while (!Thread.interrupted()) {
                selector.select();
                Set selected = selector.selectedKeys();
                Iterator it = selected.iterator();
                while (it.hasNext())
                    // 转发
                    dispatch((SelectionKey)
                    (it.next());
                     selected.clear();
            }
        } catch(IOException ex){ /* ... */ }
    }


    void dispatch(SelectionKey k) {
        Runnable r = (Runnable) (k.attachment());
        if (r != null) r.run();
    }

Reactor 3: Acceptor

• 处理连接请求，并根据 Event 事件分发给 对应的 Handler 处理

class Acceptor implements Runnable { // inner
    public void run() {
        try {
            SocketChannel c = serverSocket.accept();
            if (c != null) new Handler(selector, c);
        } catch (IOException ex) { /* ... */ }
    }
} }

Reactor 4: Handler setup

final class Handler implements Runnable {
    final SocketChannel socket;
    final SelectionKey sk;
    ByteBuffer input = ByteBuffer.allocate(MAXIN);
    ByteBuffer output = ByteBuffer.allocate(MAXOUT);
    static final int READING = 0, SENDING = 1;
    int state = READING;

    Handler(Selector sel, SocketChannel c) throws IOException {
        socket = c;
        c.configureBlocking(false);
        // Optionally try first read now
        sk = socket.register(sel, 0);
        sk.attach(this);
        sk.interestOps(SelectionKey.OP_READ);
        sel.wakeup();
    }

    boolean inputIsComplete() { /* ... */ }

    boolean outputIsComplete() { /* ... */ }

    void process() { /* ... */ }

总结

• 服务器端用一个线程通过多路复用搞定所有的 IO 操作（包括连接，读、写等），编码简单，清晰明了，但是如果客户端连接数量较多，将无法支撑
